70 Amp Automotive Battery Charger
70 Amp Automotive Battery Charger
Couldn't load pickup availability

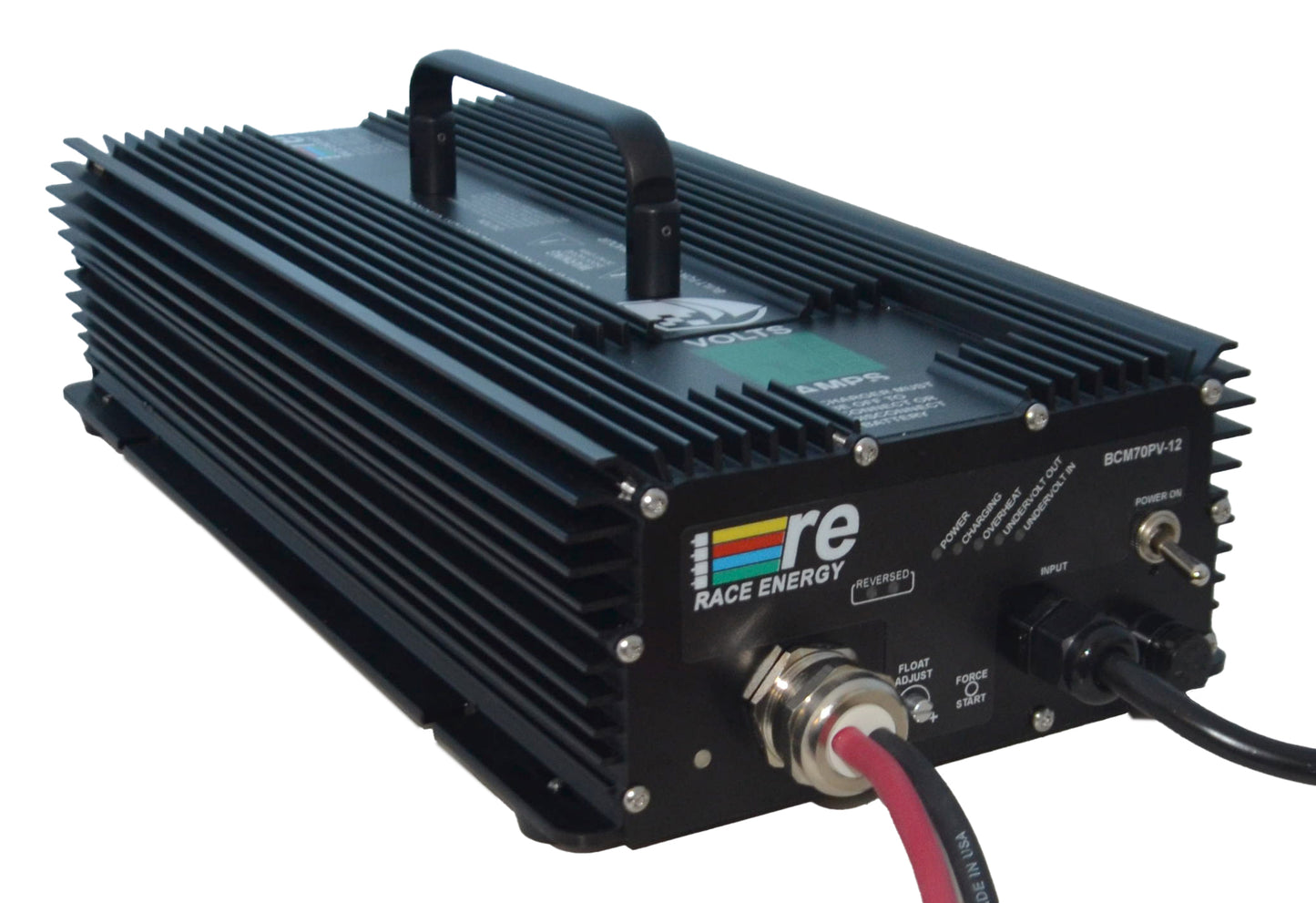

The BCM70PV-12 Automotive Battery Charger features a Universal AC input with Power Factor Correction that allows it to run from any AC voltage from 100 to 240 VAC. Instead of fuses to protect the output connections, it has solid state reverse polarity protection including live contact reverse connection protection. The charger is equipped with a folding carrying handle and rubber feet for portable operation.
The output is 70 amps continuous, and the voltage is adjustable from 12.0 to 15.0 VDC to allow charging of any topology of 12-volt nominal battery including Lithium Ion.

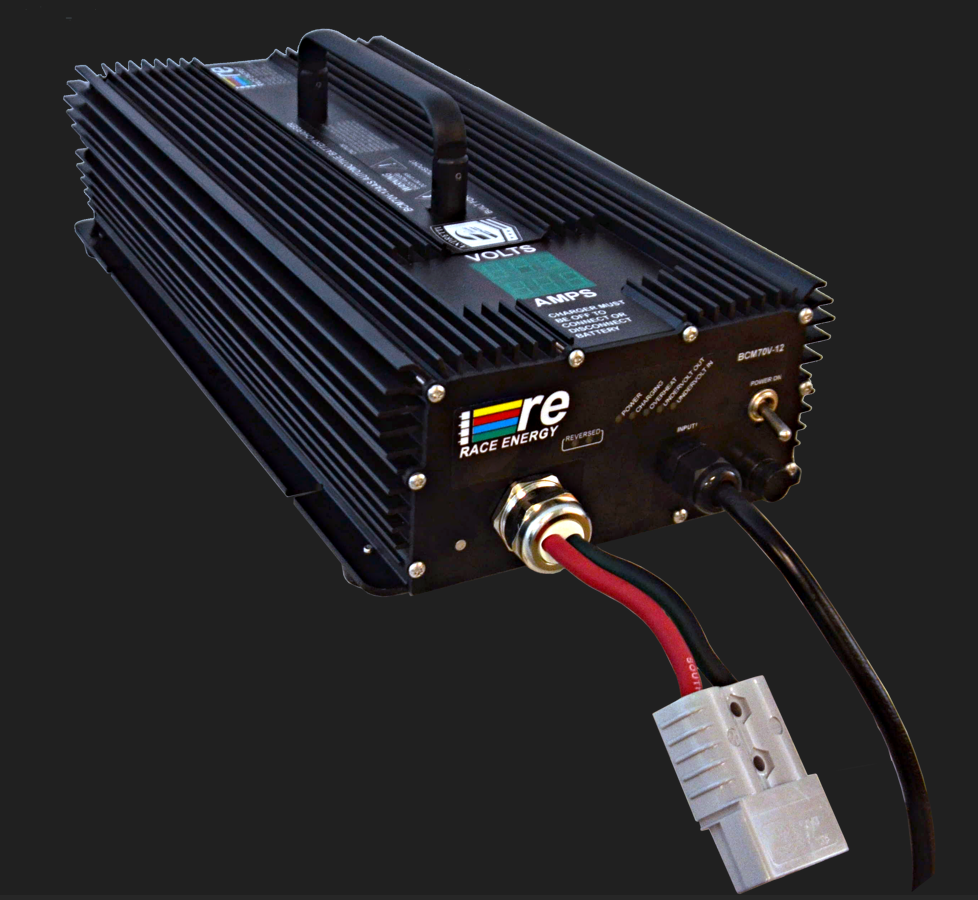

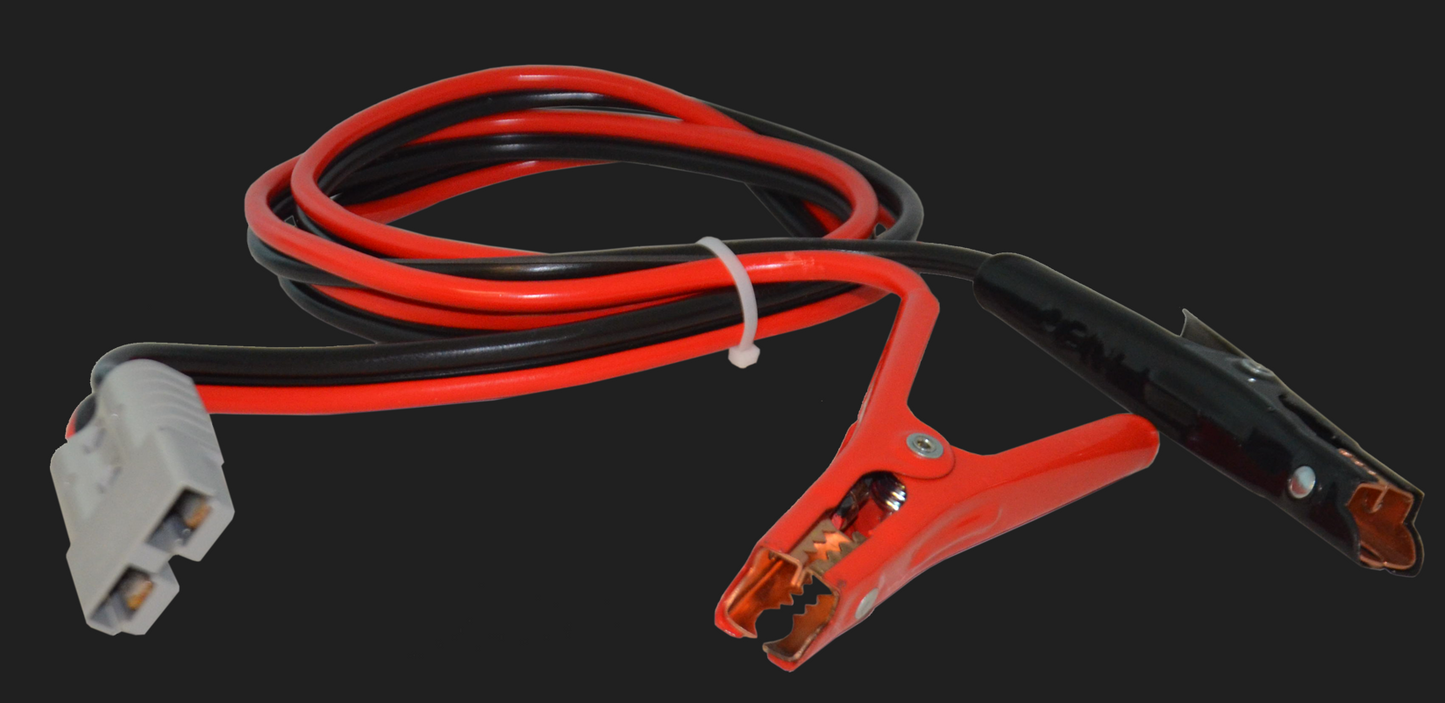

Also available is an optional wall mount bracket that the charger simply slides into. The output is a short Anderson SB120 connector that either clamps to the wall mount bracket or serves as a connection for the included 8 foot, 6 gauge jumper cable terminated with Alligator clips. We can also make any other style of connecting cable using whatever connection method you might need. The wall mount bracket includes a place to hang the cable and a pair of non-conductive pads to park the Alligator Clips of the standard cable. The bracket can be mounted with the supplied tape, or with standard fasteners.
The charger includes an accurate bright LED Volt/Ammeter so you can always monitor the charge status of the battery, even from a distance.
We can customize the label with your logo at no additional cost. We just need a decent logo file from you in any standard graphical format. Included is a photo of a charger we built recently for Andretti Autosport.
Each BCM70 is custom built, please allow up to 3 week to ship.
